XPRESSCLAD PX40

High performance rear-ventilated facade system

Express Joint Perfection

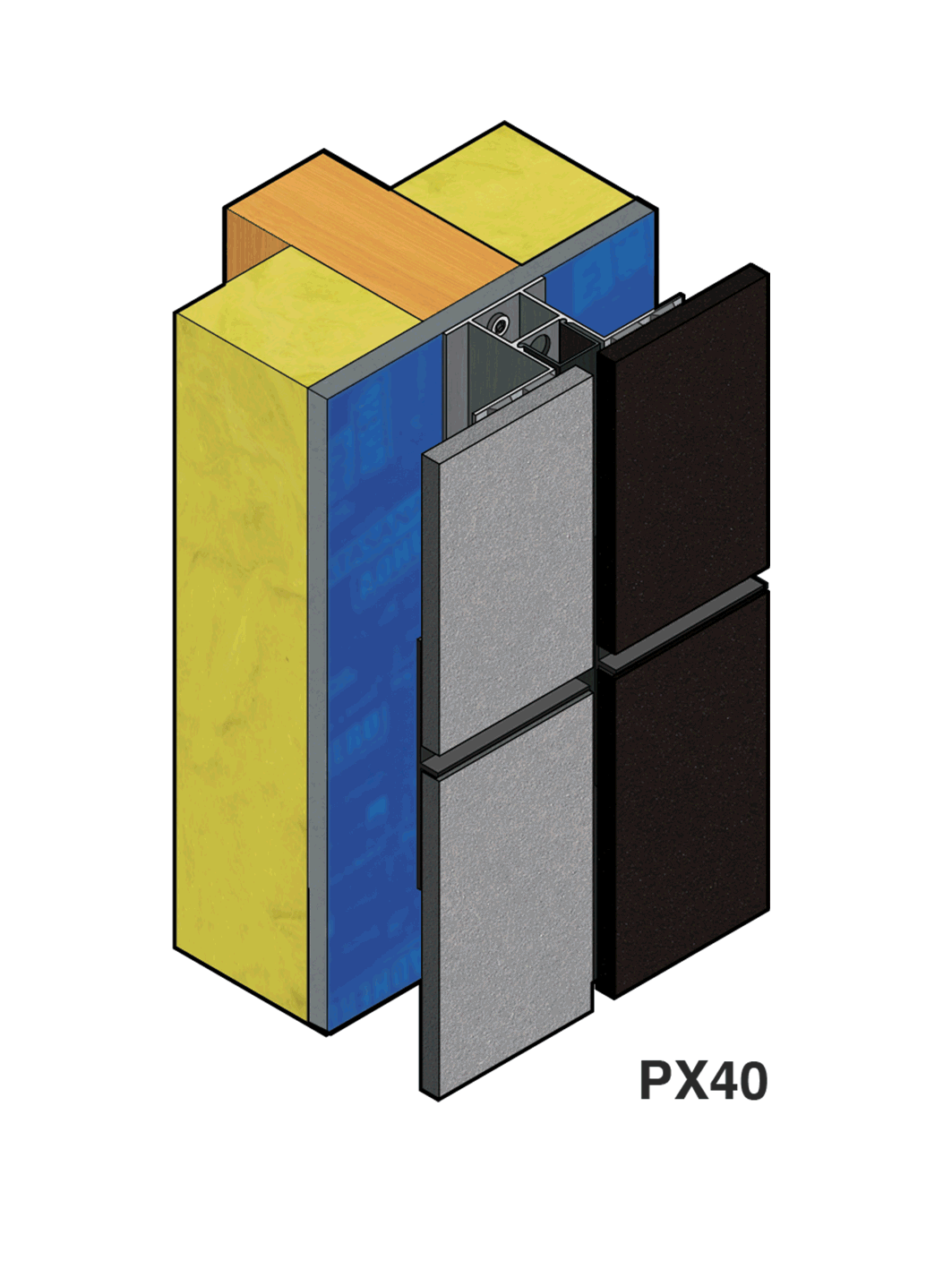

XpressClad PX40 is a top to bottom ventilated rainscreen cladding system with an express joint finish. It is both an aesthetically pleasing and functional cladding option for modern buildings.



XpressClad PX40 incorporates an anodised aluminium rail support system to achieve a 40mm cavity depth. A quick and easy install on standard NZS 3604 timber framing.



Cladding panels are attached to the support rails with the concealed adhesive fixing system, creating a clean and high aesthetic finish.



Select from prefinished panels offered in a large range of colours and surface textures only requiring low maintenance or a plain panel ready for the site applied finish of your choice.



The XpressClad PX40 system offers architects the freedom to design unique facades, achieved by experimenting with panel sizes, pattern layouts combined with the range of colour and finishes offered.



The XpressClad PX40 system is not only cost effective and durable, it can also be used anywhere in New Zealand including coastal locations and up to extreme wind pressures. Making it suitable for both residential and commercial buildings of any height.


Amazing Features
& Benefits

Rain-screen Cladding with natural top to bottom ventilation

Suitable for buildings over 10m, in conjunction with a PS1

Complies with C/AS2 5.8 External Wall Cladding

Tested to BS 8414-2 Standard and Classified to BR 135

Part of a Full Fire-rated Wall System

Anodized Aluminium support rails and components provide 50 year service life

15 year system warranty

Easy to Install

Designed to install on standard NZS 3604 timber framing

No double framing required at vertical expressed joints

No inter-storey flashing required at every second floor

Adhesive fixed Cladding have no LRV colour restrictions

Almost maintenance free when used with a Prefinished Cladding Panel



XpressClad Substructure Options

There are 3 XpressClad substructure options; PX40, PX20 & PX3-0.

The options slightly vary in cavity depth, drainage, ventilation and adhesive application.

For guidance on which option to use, a clear comparison of the options can be seen below.

Although there are 3 options, the finished façade looks the same for all 3.

The XpressClad substructure can then match with 3 different cladding products.

See below for panel options.



40mm Cavity Depth

Drained and

Bottom to Top Ventilated

Suitable for buildings at any height

Recommend for Commercial or

any projects requiring a deeper cavity depth

May require site-specific PS1

due to building height

Deepest XpressClad cavity

Unrestricted Building Height

May require site-specific PS1

Flexible horizontal joints without

extra framing

Easy and Quick Install

Mainly Vertical rails


20mm Cavity Depth

Drained and

Bottom to Top Ventilated

Suitable for buildings up to 25m

Recommend for Residential,

Light Commercial Buildings &

Ministry of Education (MoE) projects

May require site-specific PS1

due to building height

Pros & Considerations

standard 20mm cavity

Unrestricted Building Height

May require site-specific PS1

Flexible horizontal joints without

extra framing

Easy and Quick Install

Mainly Vertical rails


20mm Cavity Depth

Drained at every

Horizontal Joint

Suitable for buildings below 10m

Recommend for Residential &

Light Commercial Buildings

BRANZ Appraisal No. 1038

Limited to building height below 10m

standard 20mm cavity

Restricted to 10m

Compliance with BRANZ appraisal

More components and framing for horizontal rails required

Long install time - require horizontal, vertical rails and small components


Horizontal Section

Cladding Panel Options


SwisspearlLargo_CaratCoral7032_Detail_10

High Quality Fibre Cement Panel

Prefinished Product = No Maintenance

Large range of colours and finishes

Indent Product

1750kg/m3

Approx. Density

Suitable for Fire Rated Walls

Manufactured in Switzerland


HPL core with Real Wood Veneer

Prefinished Product = No Maintenance

Large range of colours and finishes

Indent Product

1350kg/m3

Approx. Density

Manufactured in Spain

Shera Board 9x1200x2400.jpg

Medium Density Fibre Cement Panel

Requires a Paint Finish & Maintenance

Painted any colour

(No LRV Restriction)

Ex-Stock Product

1350kg/m3

Approx. Density

Suitable for Fire Rated Walls

Manufactured in Thailand
